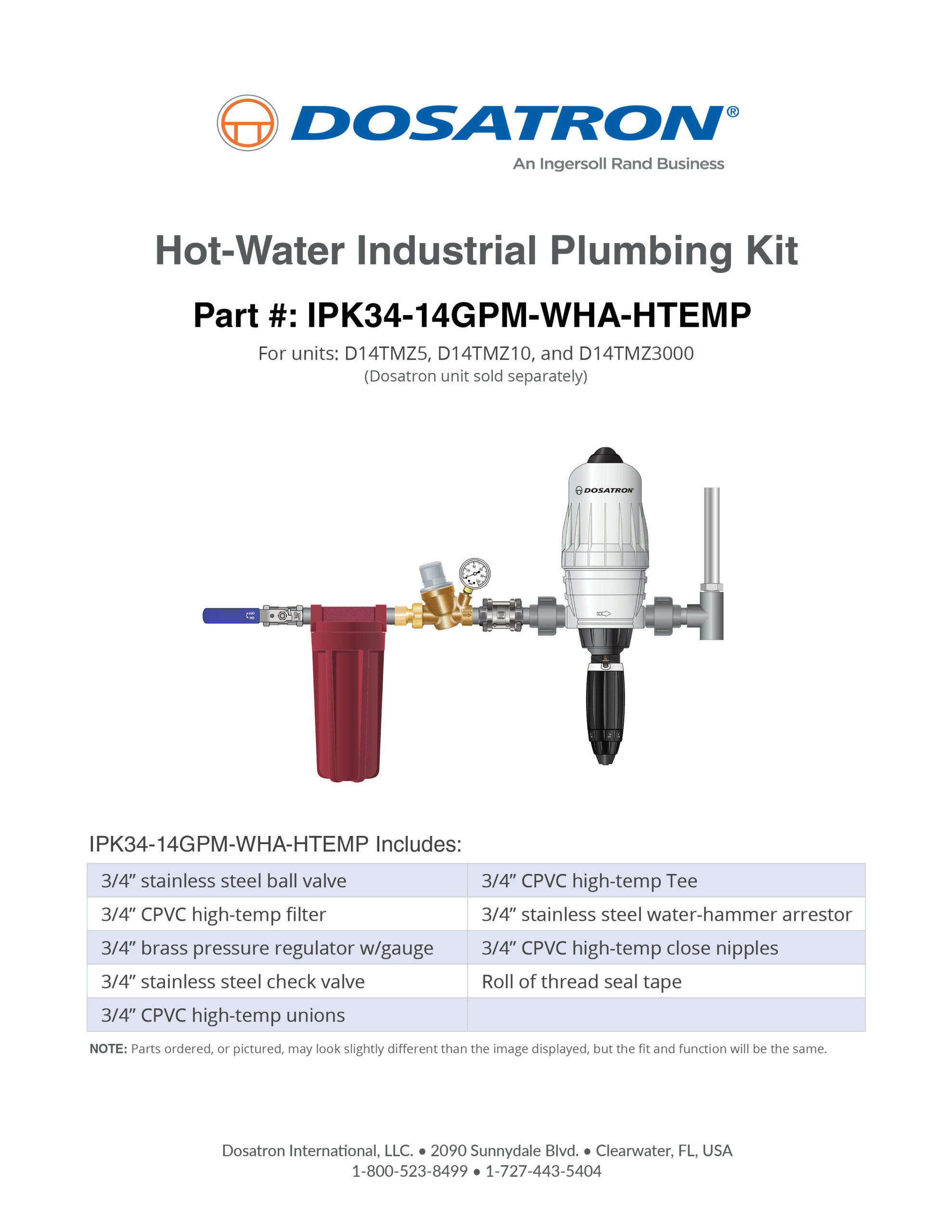

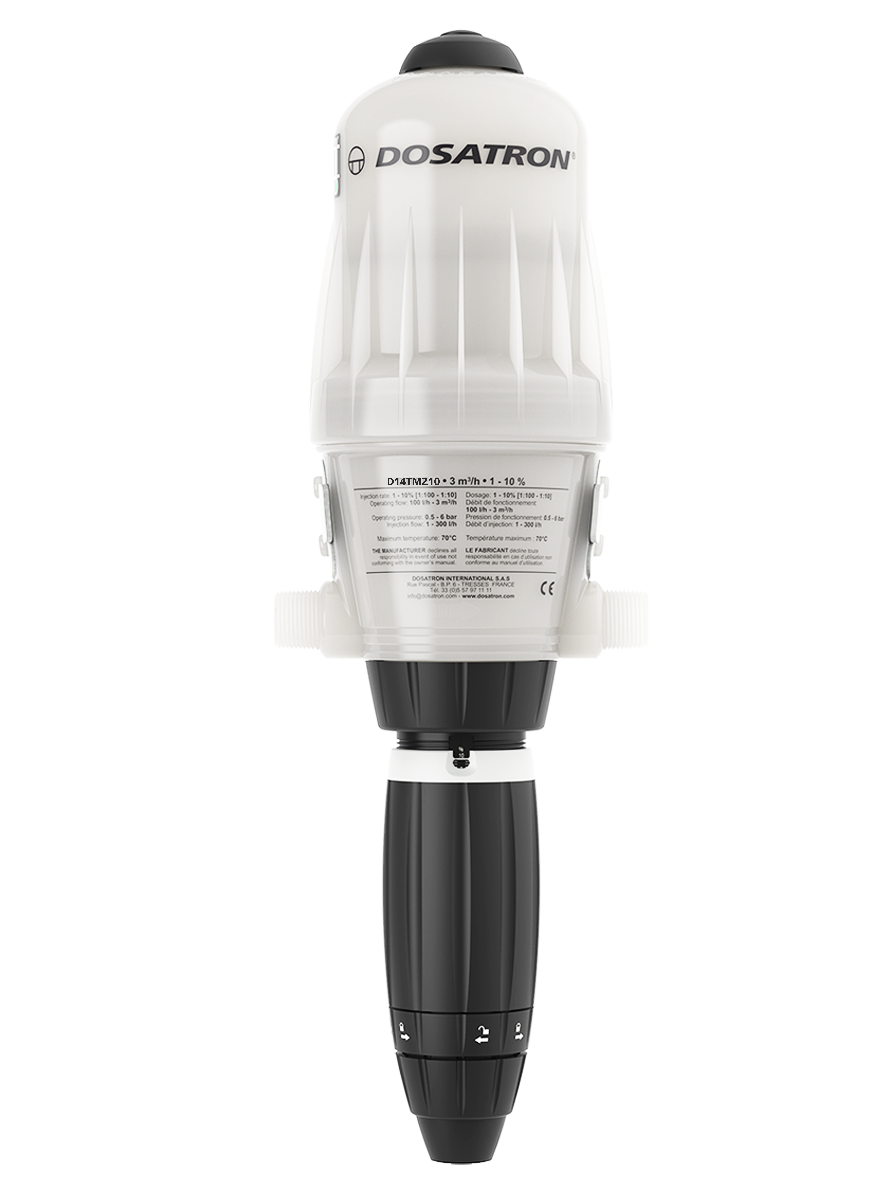

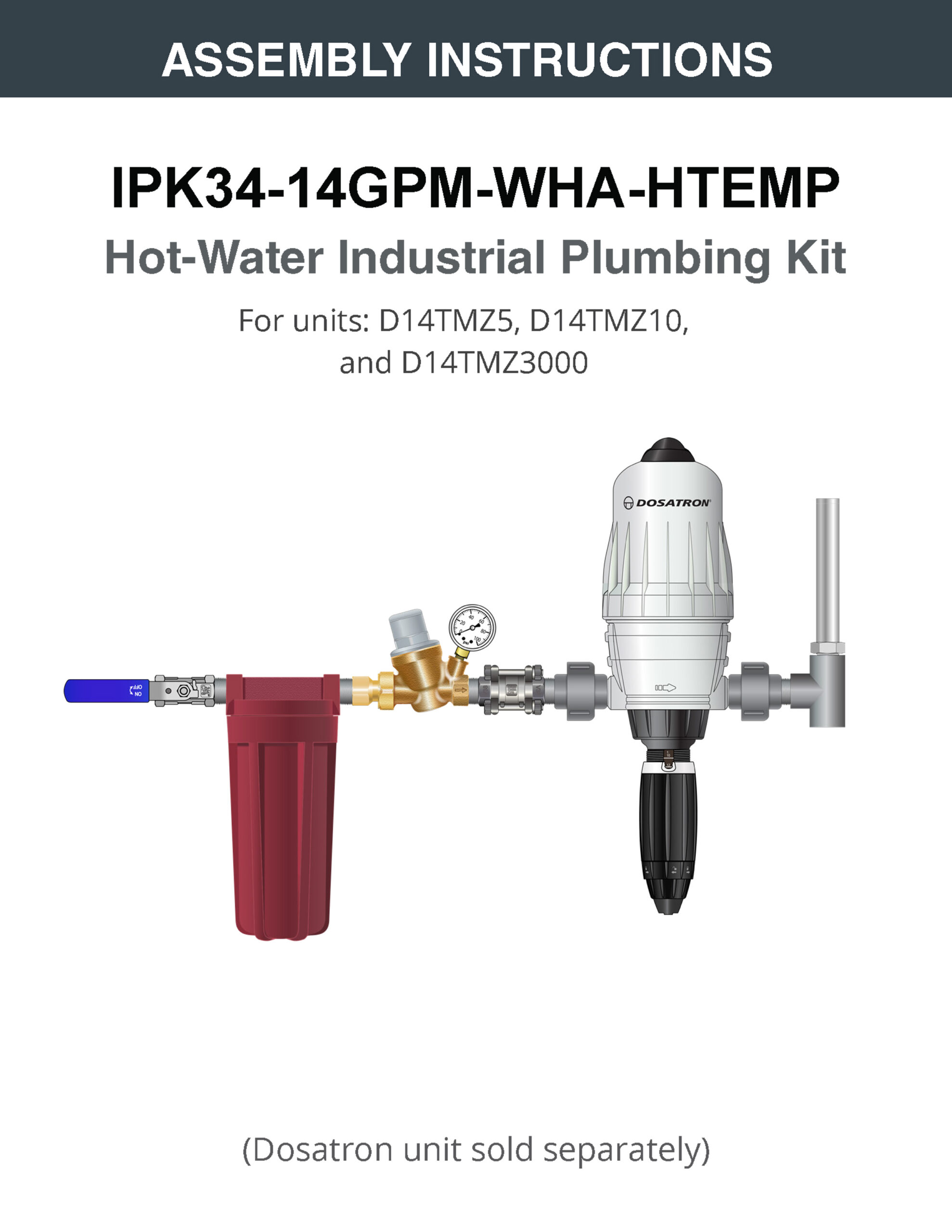

HOT-WATER Dosatron D14TMZ10-14 GPM is a precision water-powered unit that will operate with water temperatures up to 158 °F, for maximum cleaning effectiveness. Made of high-performance materials with a metal-free, re-enforced piston. High chemical compatibility. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:100 to 1:10 (1% to 10%). Installation is easy with an Industrial Plumbing Kit # IPK34-14GPM-WHA-HTEMP.

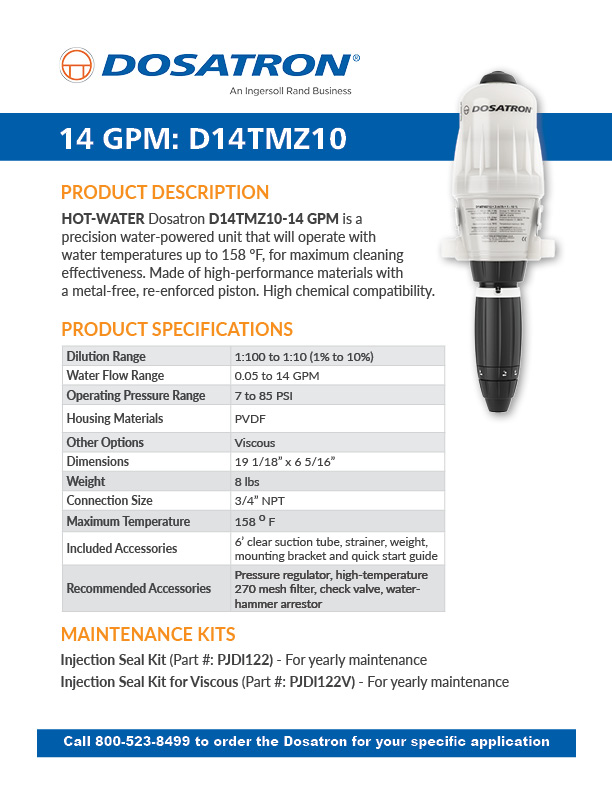

Specifications
Connection Size: 3/4″ NPT
Maximum Temperature: 158 °F
Unit Weight: 8 lbs
Dimensions: 19 1/8″ x 6 5/16″
Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
Pressure: 7 to 85 PSI
Ratio Range: 1:100 to 1:10
Percentage Range: 1 to 10%
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
