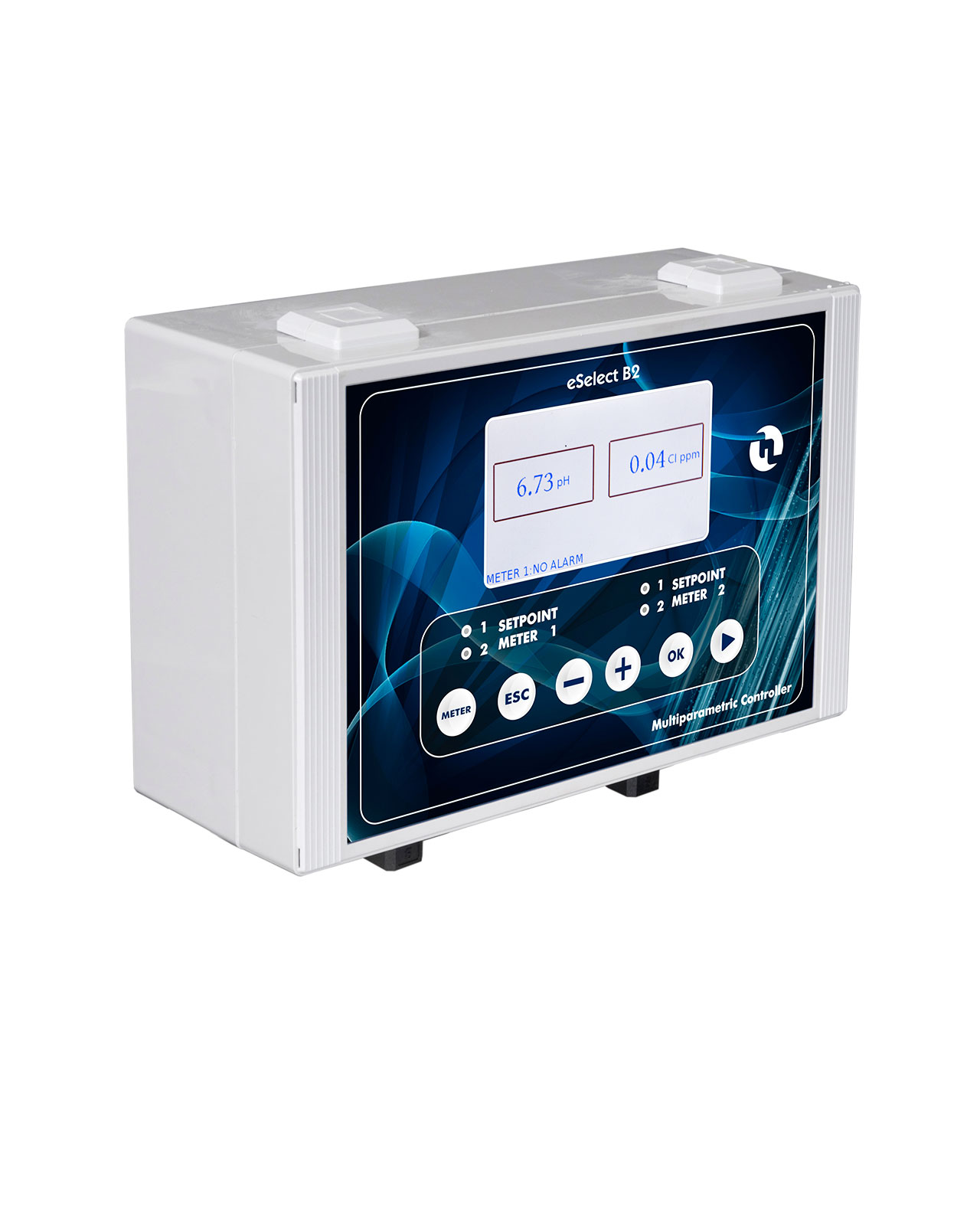

• 240 x 197 x 92 mm
• 90 – 260 VAC
• Color backlit 4” display
• Galvanic Isolated Electronics
• 4 – 20 mA output (dynamic 0..500Ω) No. 2 current output for each measurement
• TTL 0 – 999 imp/min output. No. 2 TTL output for each measurement
• Measure pH 0 – 14 0,01
• Measure Rx (mV) – 1000 to +1400 ± 1mV
• Chlorine measure 0 to 2, 0 to 20, 0 to 200, 0 to 2000 ppm
• Temperature measure 0 to 100°C
• Weekly, Daily Timer for programmed dosing: flocculant cycle or probe cleaning
• Internal memory data storage and USB output for downloading
• Minimum and maximum measurement alarm function
• Overdosing alarm function
• Serial output for connecting to computer/network
