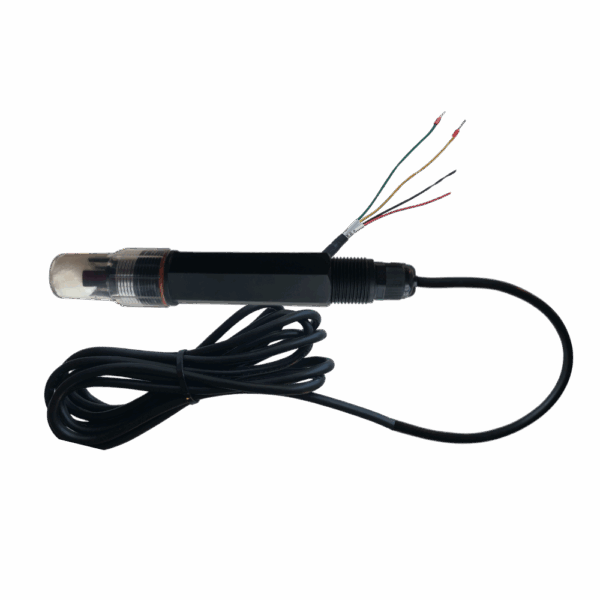

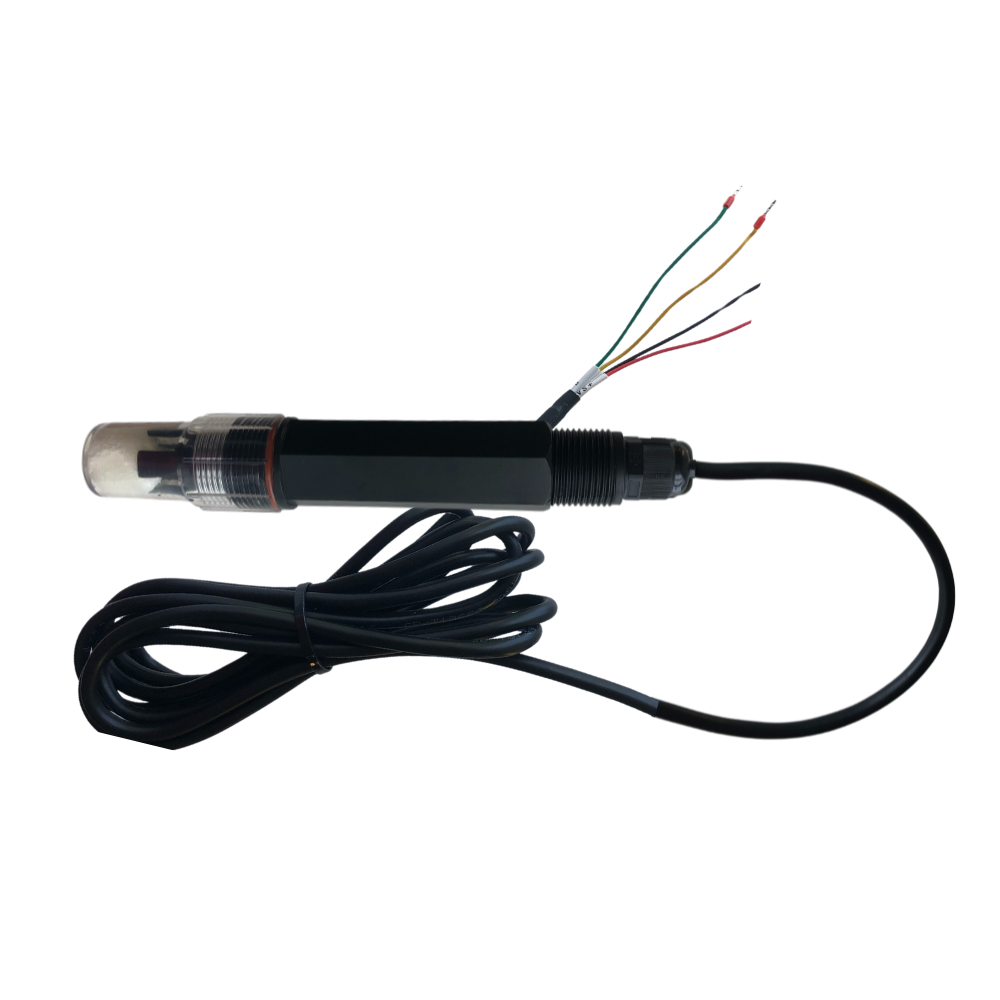

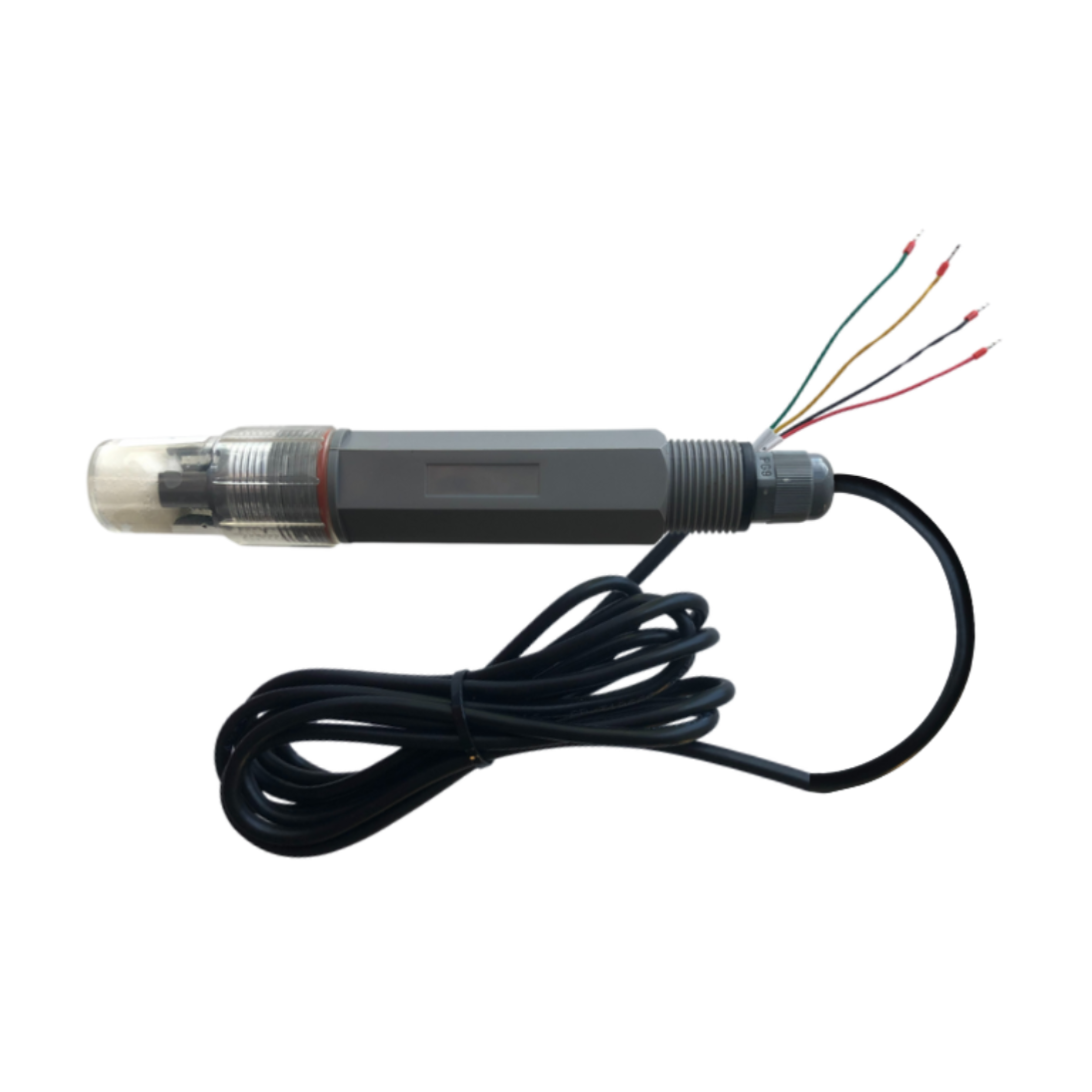

MAXIMUS ORP Sensor

Item Number:
6100-0032

$703.12

Description

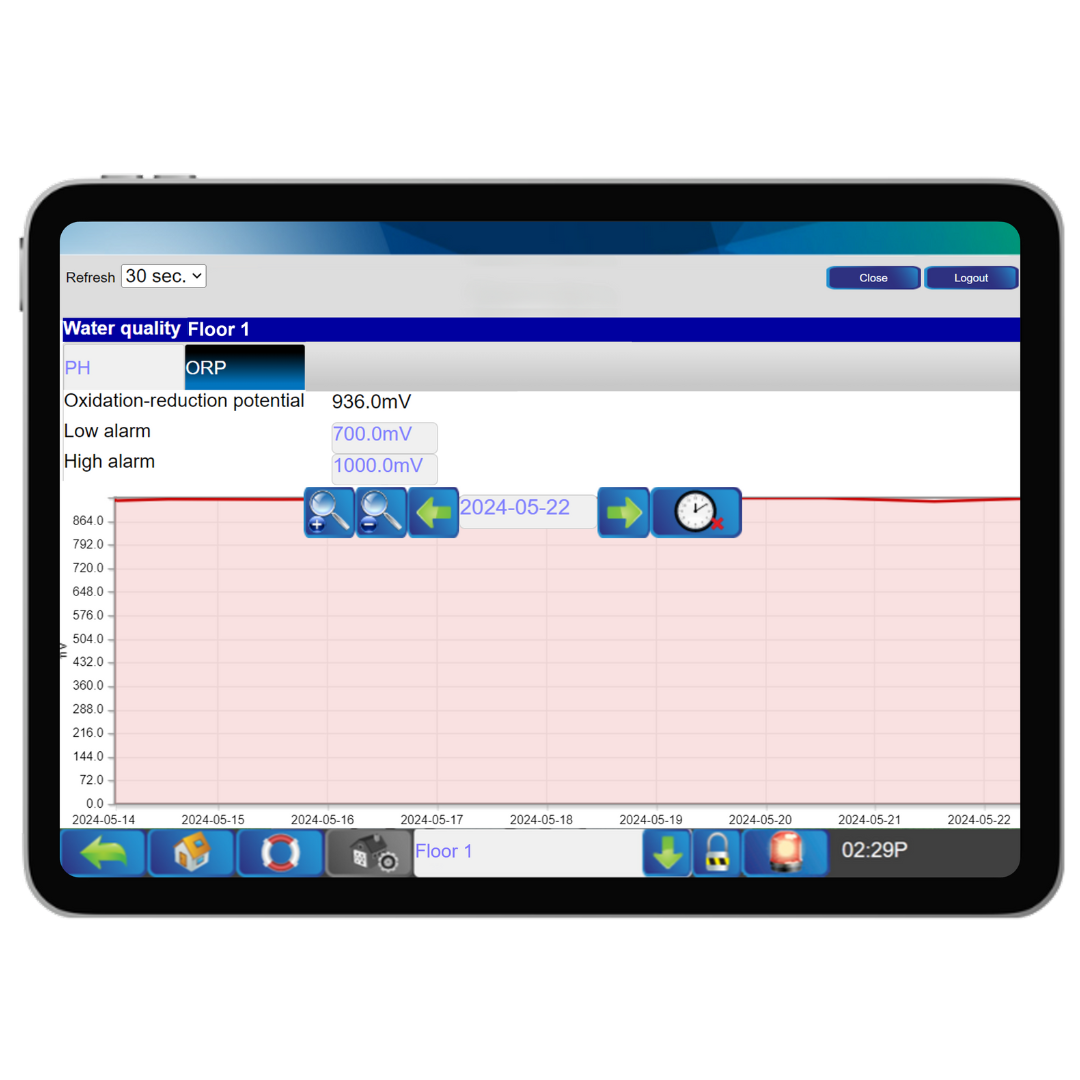

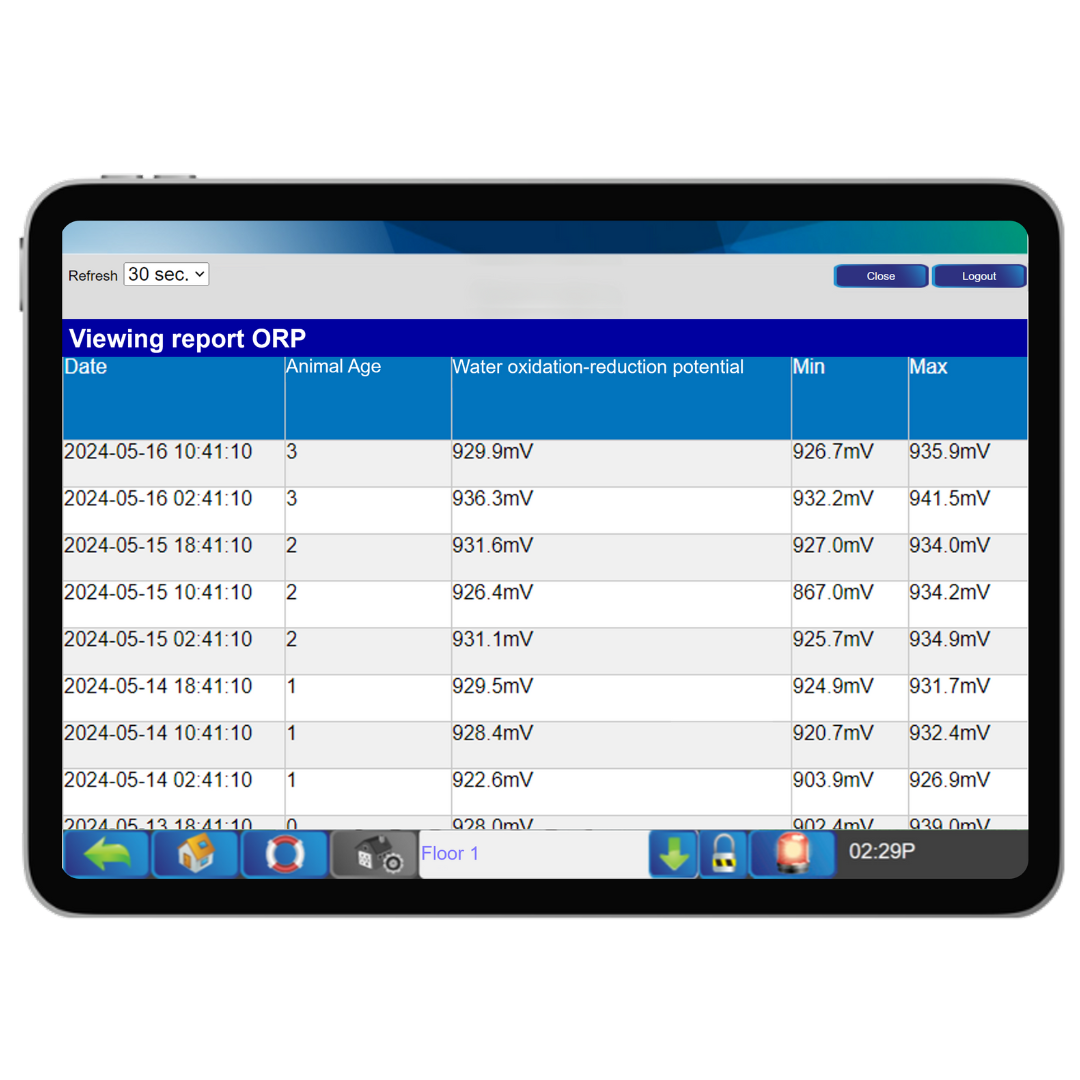

The ORP (oxidation-reduction potential) sensor measures redox potential. It indicates the oxidizing power, which is used to assess the overall sanitary quality of the water. Connected to the MAXIMUS controller, this sensor transmits ORP data, enabling the producer to ensure that the right level is maintained to increase the effectiveness of chlorine in reducing bacteria in the water. For any questions specific to MAXIMUS products, please call 616-350-9000

Specifications

  • ORP Sensor for non corrosive liquid
  • NPT 3/4 thread at top and bottom
  • Detection range: -1500 mV to +1500 mV
  • Accurancy: ±0,5 mV
  • Output signal: RS485
  • Operating environment: -10 to +80℃ (<0.6 MPa)
  • Stability: ≤1%/year
  • Power consumption: <0.4 W
  • Warranty: 1 year
Support Documentation (1)
