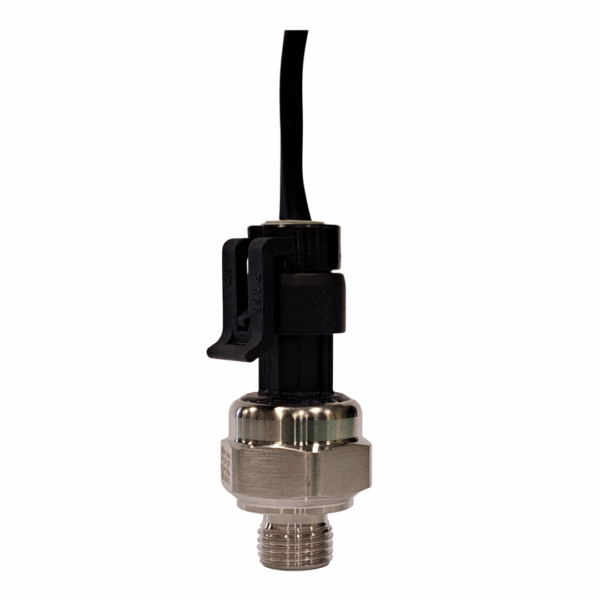

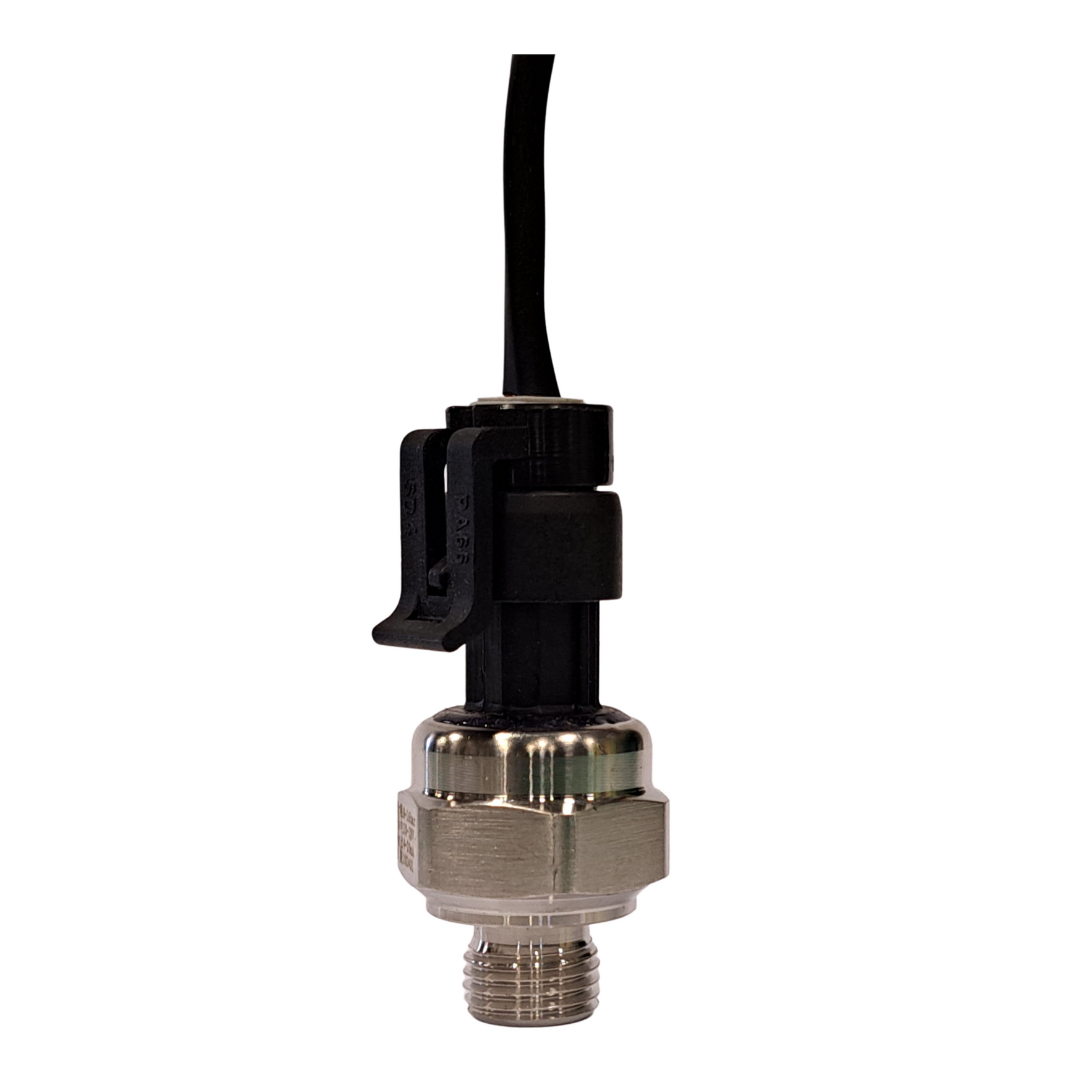

MAXIMUS Water Pressure Sensor with Surge

Item Number:
6100-0018

$107.17

Description

Water Management

Water is a precious resource that has an impact on the growth, health, reproduction, temperature regulation, etc., of livestock. Measuring water pressure is therefore one of the key factors to ensure animals get the right amount of water.

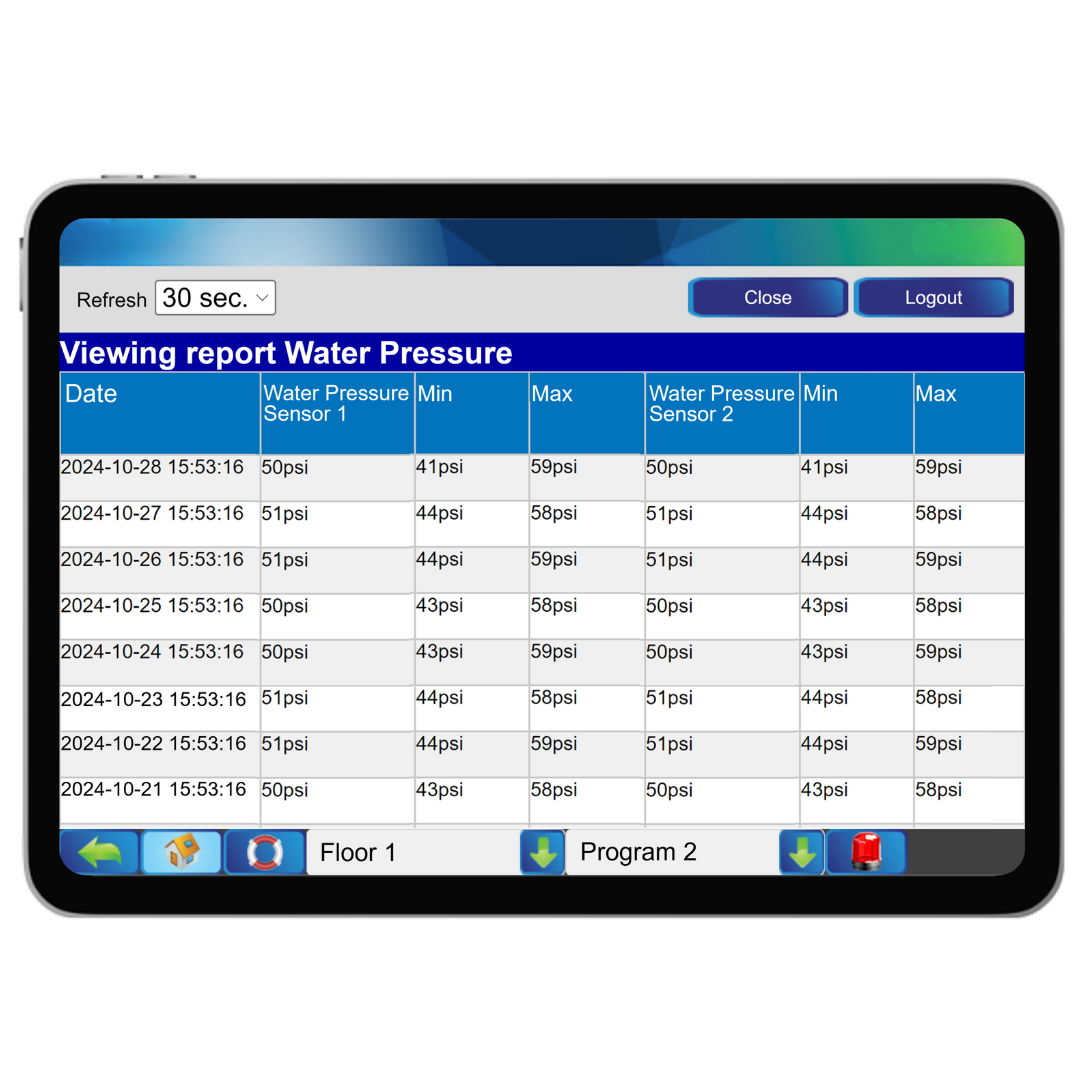

A water pressure sensor connected to the MAXIMUS controller ensures constant and reliable monitoring of your system water flow. At the slightest abnormal fluctuation in pressure, an alarm is triggered, possibly indicating clogged filters, blocked or broken pipes. It’s the ideal solution for preventing a lack of water supply to your animals.

For any questions specific to MAXIMUS products, please call 616 350-9000.

Specifications

  • ¼” male NPT water pressure sensor with surge protection
  • Pressure range: 0 to 232 psi
  • Thread size: ¼” male NPT
  • Power supply: 12 to 24 VDC
  • Output signal: 4 to 20 mA
  • Precision: ±1,5% FS (Full Scale)
  • Operating temperature: -4 to 257 °F (-40 to 125 °C)
  • Protection rating: IP68
  • Installation: In any position
  • 1-year warranty
