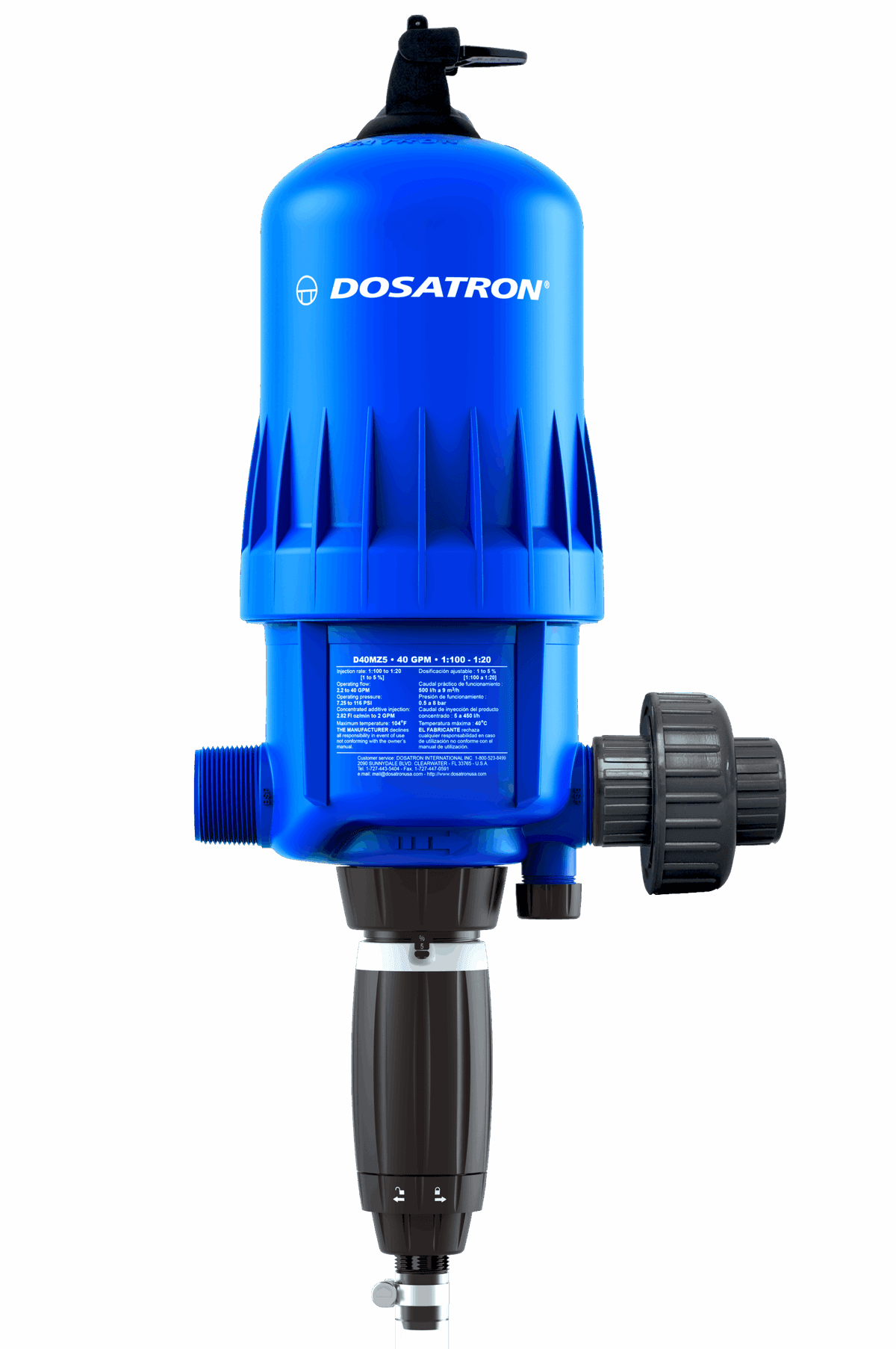

D40MZ5-HY - 40 GPM Dosing Pump

Name: D40MZ5-HY - 40 GPM Dosing Pump
Price: 2017.68 USD
Availability: InStock

SKU: d40mz5bpvfhy

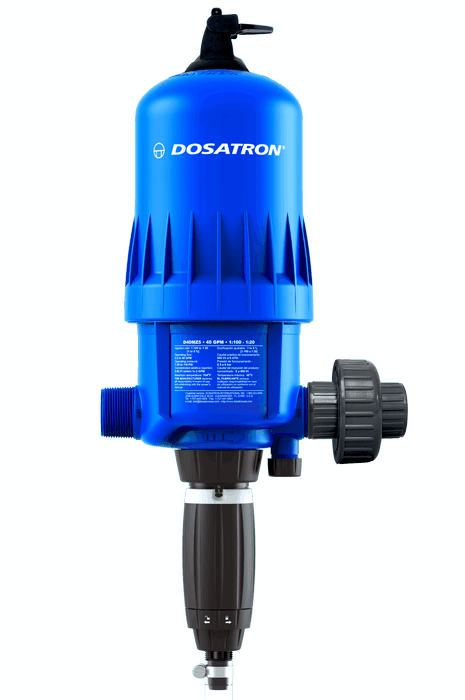

Dosatron D40MZ5BPVFHY 40 GPM Dosing Pump

For Acidic/Lower pH Value (7.0 and lower) chemistries with bypass

SKU: d40mz5bpvfhy

Water-Powered Dosatron D40MZ5BPVFHY – 40 GPM with dosing seals for the injection of Acidic/Lower pH Value (7.0 and lower) chemistries and concentration scale specifically designed for hydroponic applications. Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting, perfect for the indoor grower. It has a flow range of 2.2 to 40 GPM and a dilution range of 1:100 to 1:20 (1% to 5%).

For annual maintenance use seal kit PJDI122VVF. To extend the life of your Dosatron use rebuild kit MKD40MZ5VF.

Learn more about this product.

In Stock

$2,017.68

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Add Extended Warranty:What's covered?

Standard Warranty - 12 months (included)

Extended 24 months$201.76

Special: Doser for the Nutrient Delivery System
Connection Size: 1 1/2″ NPT
Unit Weight: 12 lbs
Dimensions: 25 15/16″ x 8 1/2″
Flow: 2.2 to 40 GPM (8.32 to 151 LPM)
Pressure: 7.2 to 116 PSI
mL/gal: 37.5 to 190 mL
tsp/gal: 7.5 to 38 tsp
Percentage (%): 1 to 5%
Oz/gal: 1.280 to 6.400
Included Accessories: Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.

Compare D40MZ dosing pumps (1 1/2" NPT, cold water up to 104 °F)

Dilution range	Flow	Pressure	Usage	Model
1:3000 to 1:500 (0.03% to 0.2%)	2.2 to 40 GPM	4.3 to 116 PSI	For acidic/lower pH value (7.0 and lower) chemistries, with integrated bypass	D40MZ3000	Buy Now
1:3000 to 1:500 (0.03% to 0.2%)	2.2 to 40 GPM	4.3 to 116 PSI	For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass	D40MZ3000-HY	Buy Now
1:1000 to 1:100 (0.1% to 1%)	2.2 to 40 GPM	4.3 to 116 PSI	For caustic/higher pH value (7.0 and higher) chemistries	D40MZ1000	Buy Now
1:1000 to 1:100 (0.1% to 1%)	2.2 to 40 GPM	4.3 to 116 PSI	For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass	D40MZ1000-HY	Buy Now
1:500 to 1:50 (0.2% to 2%)	2.2 to 40 GPM	4.3 to 116 PSI	For caustic/higher pH value (7.0 and higher) chemistries	D40MZ2	Buy Now
1:500 to 1:50 (0.2% to 2%)	2.2 to 40 GPM	4.3 to 116 PSI	For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass	D40MZ2-HY	Buy Now
1:100 to 1:20 (1% to 5%)	2.2 to 40 GPM	7.2 to 116 PSI	For caustic/higher pH value (7.0 and higher) chemistries	D40MZ5	Buy Now
1:100 to 1:20 (1% to 5%)	2.2 to 40 GPM	7.2 to 116 PSI	For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass	D40MZ5-HY	Buy Now

Compare D40WL water treatment chlorinators (1 1/2" NPT, NSF/ANSI/CAN 61 & 372 certified)

Dilution range	Flow	Pressure	Usage	Model
1:3000 to 1:800 (0.03% to 0.125%)	2.2 to 40 GPM	5 to 116 PSI	For water potabilization, disinfection, and sanitation at commercial and community scale	D40WL3000	Buy Now
