D14MZ2-D - 14 GPM Chemical Injector

Name: D14MZ2-D - 14 GPM Chemical Injector
Availability: InStock

SKU: d14mz2vfdii

For Acidic/Lower pH Value (7.0 and lower) chemistries

SKU: d14mz2vfdii

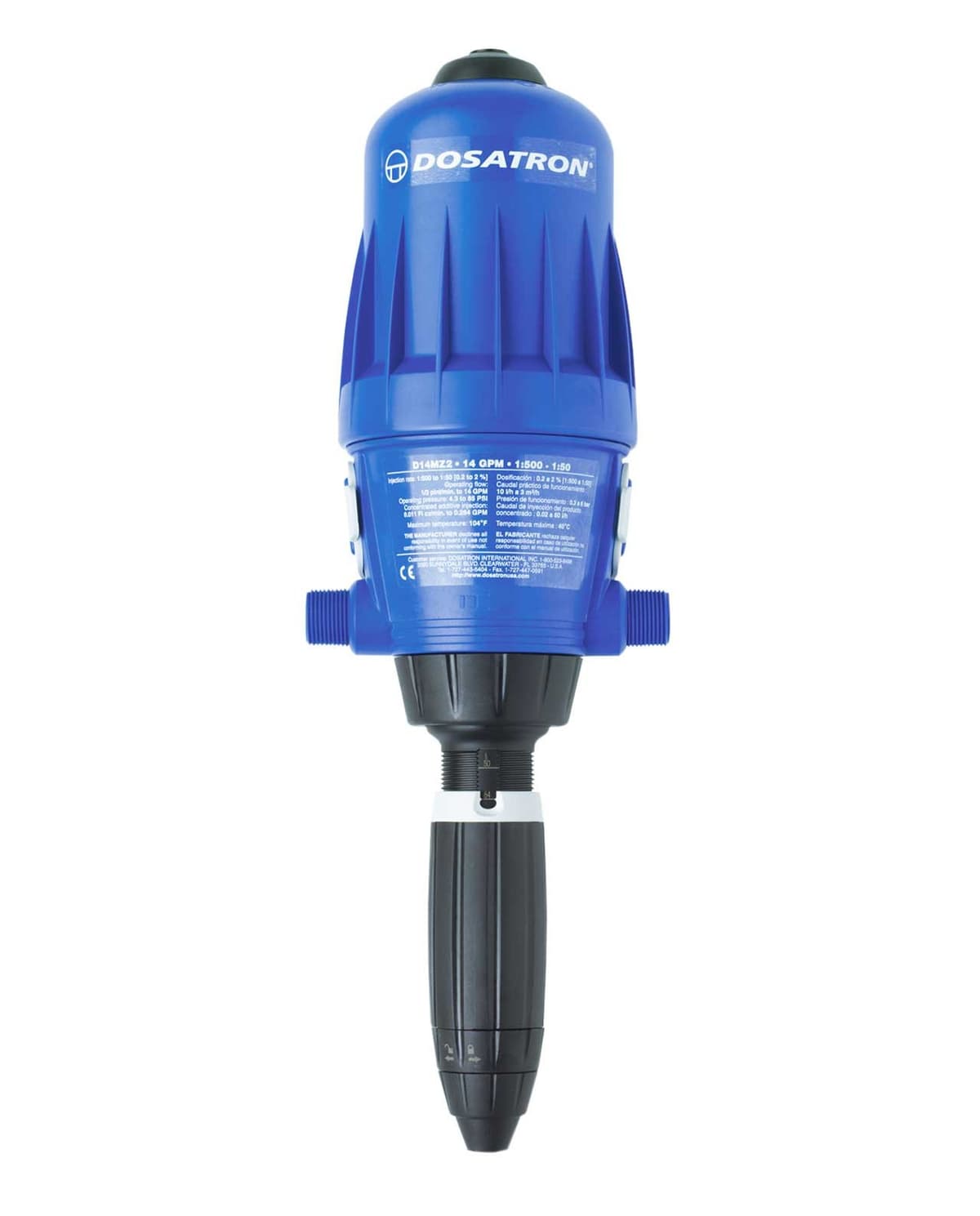

Water-Powered Dosatron D14MZ2VFDII – 14 GPM with dosing seals for Acidic/Lower pH Value (7.0 and lower) chemistries is suitable for car wash applications. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%).

Learn more about this product.

Request a Quote

For regular maintenance use mini maintenance kit PJDI116MINI-H.

For annual maintenance use seal kit PJDI116VF.

To extend the life of your Dosatron use rebuild kit MKD14MZ2VF.

Connection Size: 3/4″ NPT
Unit Weight: 6 lbs
Dimensions: 19 1/8″ x 6 5/16″
Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
Pressure: 4.3 to 85 PSI
Ratio Range: 1:500 to 1:50
Percentage Range: 0.2 to 2%
Ounces Per Gallon Range: 0.256 to 2.560
Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide

Compare D14MZ dosing pumps (3/4" NPT, cold water up to 104 °F)

Dilution range	Flow	Pressure	Usage	Model
1:3000 to 1:333 (0.03% to 0.3%)	0.05 to 14 GPM	4.3 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries	D14MZ3000	Buy Now
			For acidic/lower pH value (7.0 and lower) chemistries, car wash configuration	D14MZ3000-D	Buy Now
			For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass	D14MZ3000-HY	Buy Now
1:1000 to 1:100 (0.1% to 1%)	0.05 to 14 GPM	4.3 to 85 PSI	For acidic/lower pH value (7.0 and lower) chemistries	D14MZ1000	Buy Now
1:1000 to 1:100 (0.1% to 1%)	0.05 to 14 GPM	4.3 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass	D14MZ1000-HY	Buy Now
1:500 to 1:50 (0.2% to 2%)	0.05 to 14 GPM	4.3 to 85 PSI	For acidic/lower pH value (7.0 and lower) chemistries	D14MZ2	Buy Now
			For acidic/lower pH value (7.0 and lower) chemistries, car wash configuration	D14MZ2-D	Buy Now
			For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass	D14MZ2-HY	Buy Now
1:200 to 1:20 (0.5% to 5%)	0.05 to 14 GPM	4.3 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries, with integrated bypass	D14MZ5	Buy Now
1:100 to 1:10 (1% to 10%)	0.05 to 14 GPM	7 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries	D14MZ10	Buy Now
1:100 to 1:10 (1% to 10%)	0.05 to 14 GPM	7 to 85 PSI	For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass	D14MZ10-HY	Buy Now
1:20 to 1:5 (5% to 20%)	0.05 to 9 GPM	7 to 57 PSI	For caustic/higher pH value (7.0 and higher) chemistries at high injection rates	D14MZ520	Buy Now

Compare D14TMZ hot-water dosing pumps (3/4" NPT, water up to 158 °F)

Dilution range	Flow	Pressure	Usage	Model
1:3000 to 1:333 (0.03% to 0.3%)	0.05 to 14 GPM	4.3 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F	D14TMZ3000	Buy Now
1:200 to 1:20 (0.5% to 5%)	0.05 to 14 GPM	4.3 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F	D14TMZ5	Buy Now
1:100 to 1:10 (1% to 10%)	0.05 to 14 GPM	7 to 85 PSI	For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F	D14TMZ10	Buy Now

Compare D14WL water treatment chlorinators (3/4" NPT, NSF/ANSI/CAN 61 & 372 certified)

Dilution range	Flow	Pressure	Usage	Model
1:500 to 1:50 (0.2% to 2%)	0.05 to 14 GPM	4.3 to 85 PSI	For water potabilization, disinfection, and sanitation at higher chlorine injection rates	D14WL2	Buy Now
1:3000 to 1:333 (0.03% to 0.3%)	0.05 to 14 GPM	4.3 to 85 PSI	For water potabilization, disinfection, and sanitation at low chlorine injection rates	D14WL3000	Buy Now

Not sure which model to choose? Chat with our experts for advice.
