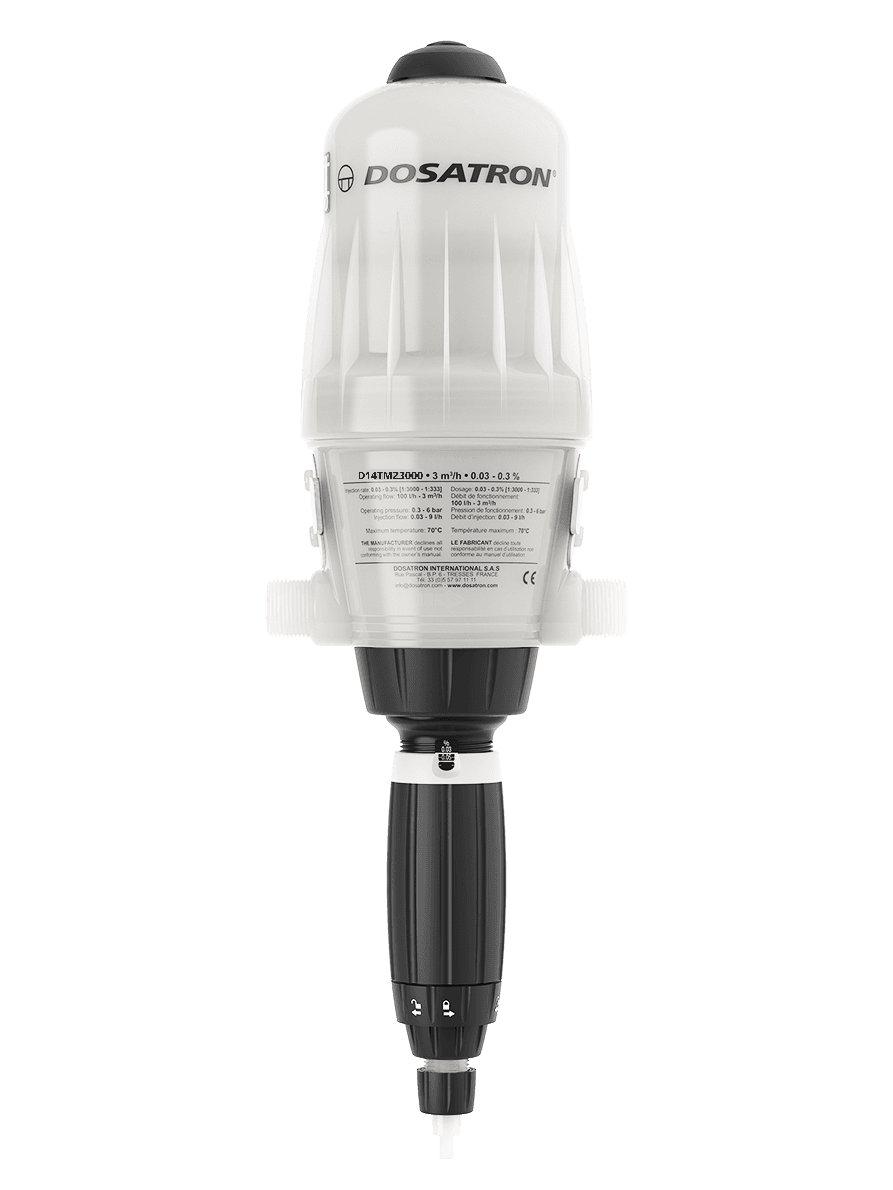

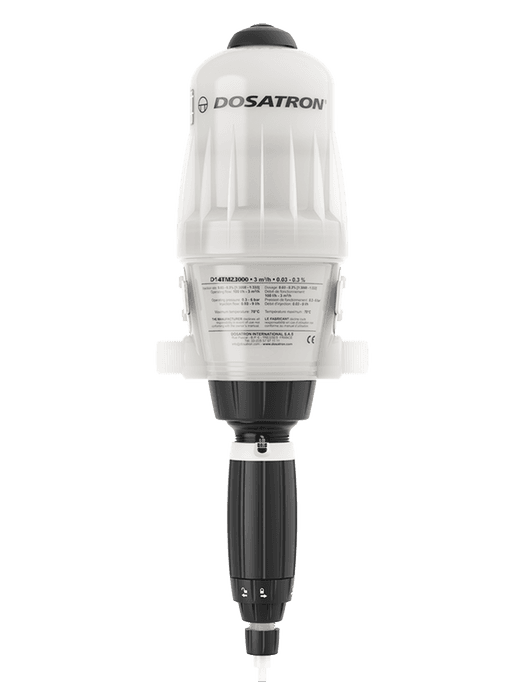

D14TMZ3000 - 14 GPM Hot-Water Dosing Pump
SKU: d14tmz3000afpii
For Caustic/Higher pH Value (7.0 and higher) chemistries
SKU: d14tmz3000afpii
HOT-WATER Dosatron D14TMZ3000AFPII – 14 GPM with dosing seals for Caustic/Higher pH Value (7.0 and higher) chemistries, is a precision water-powered unit that will operate with water temperatures up to 158 °F, for maximum cleaning effectiveness. Made of high-performance materials with a metal-free, reinforced piston. High chemical compatibility. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:3000 to 1:333 (0.03% – 0.3%). Installation is easy with an Industrial Plumbing Kit IPK34-14GPM-WHA-HTEMP.
For annual maintenance use seal kit PJDI139HTAF-1. To extend the life of your Dosatron use the piston flange kit PPDI034-1.
$1,964.02
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.HOT-WATER Dosatron D14TMZ3000AFPII – 14 GPM with dosing seals for alkaline chemistries, is a precision water-powered unit that will operate with water temperatures up to 158 °F, for maximum cleaning effectiveness. Made of high-performance materials with a metal-free, reinforced piston. High chemical compatibility. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:3000 to 1:333 (0.03% – 0.3%). Installation is easy with an Industrial Plumbing Kit IPK34-14GPM-WHA-HTEMP.
For annual maintenance use seal kit PJDI139HTAF-1. To extend the life of your Dosatron use piston flange kit PPDI034-1.
- Connection Size: 3/4″ NPT
- Maximum Temperature: 158 °F
- Unit Weight: 8 lbs
- Dimensions: 19 1/8″ x 6 5/16″
- Flow: 0.05 to 14 GPM (0.19 to 50 LPM)
- Pressure: 7 to 85 PSI
- Ratio Range: 1:3000 to 1:333
- Percentage Range: 0.03% to 0.3%
- Included Accessories: Mounting bracket, suction hose, weighted strainer, and quick start guide.
| Dilution range | Flow | Pressure | Usage | Model | |
|---|---|---|---|---|---|
| 1:3000 to 1:333 (0.03% to 0.3%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries | D14MZ3000 | Buy Now |
| For acidic/lower pH value (7.0 and lower) chemistries, car wash configuration | D14MZ3000-D | Buy Now | |||
| For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass | D14MZ3000-HY | Buy Now | |||
| 1:1000 to 1:100 (0.1% to 1%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For acidic/lower pH value (7.0 and lower) chemistries | D14MZ1000 | Buy Now |
| For caustic/higher pH value (7.0 and higher) chemistries, hydroponic configuration with integrated bypass | D14MZ1000-HY | Buy Now | |||
| 1:500 to 1:50 (0.2% to 2%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For acidic/lower pH value (7.0 and lower) chemistries | D14MZ2 | Buy Now |
| For acidic/lower pH value (7.0 and lower) chemistries, car wash configuration | D14MZ2-D | Buy Now | |||
| For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass | D14MZ2-HY | Buy Now | |||
| 1:200 to 1:20 (0.5% to 5%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries, with integrated bypass | D14MZ5 | Buy Now |
| 1:100 to 1:10 (1% to 10%) |
0.05 to 14 GPM | 7 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries | D14MZ10 | Buy Now |
| For acidic/lower pH value (7.0 and lower) chemistries, hydroponic configuration with integrated bypass | D14MZ10-HY | Buy Now | |||
| 1:20 to 1:5 (5% to 20%) |
0.05 to 9 GPM | 7 to 57 PSI | For caustic/higher pH value (7.0 and higher) chemistries at high injection rates | D14MZ520 | Buy Now |
| Dilution range | Flow | Pressure | Usage | Model | |
|---|---|---|---|---|---|
| 1:3000 to 1:333 (0.03% to 0.3%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F | D14TMZ3000 | Buy Now |
| 1:200 to 1:20 (0.5% to 5%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F | D14TMZ5 | Buy Now |
| 1:100 to 1:10 (1% to 10%) |
0.05 to 14 GPM | 7 to 85 PSI | For caustic/higher pH value (7.0 and higher) chemistries in hot-water lines up to 158 °F | D14TMZ10 | Buy Now |
| Dilution range | Flow | Pressure | Usage | Model | |
|---|---|---|---|---|---|
| 1:500 to 1:50 (0.2% to 2%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For water potabilization, disinfection, and sanitation at higher chlorine injection rates | D14WL2 | Buy Now |
| 1:3000 to 1:333 (0.03% to 0.3%) |
0.05 to 14 GPM | 4.3 to 85 PSI | For water potabilization, disinfection, and sanitation at low chlorine injection rates | D14WL3000 | Buy Now |
